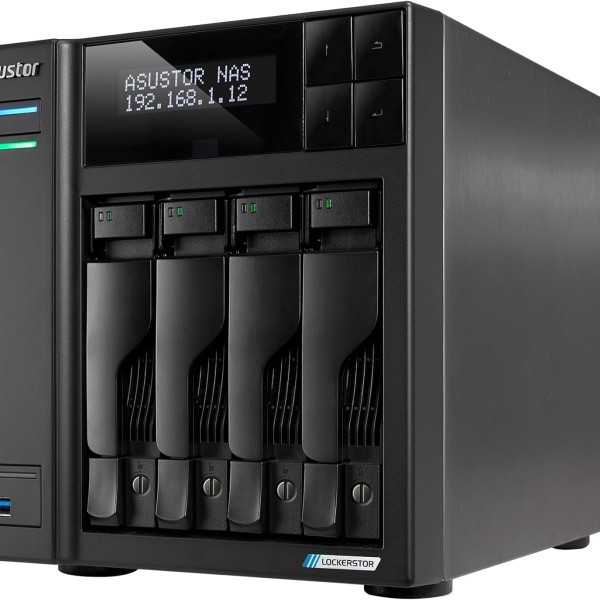

ASUSTOR LOCKERSTOR 4 GEN2+ AS6704T V2 4 BAY NAS, INTEL QUAD-CORE CPU, DUAL 5GBE PORTS, 4GB DDR4, 4 M
Hardware Specifications |
|---|
CPU | CPU Model | Intel Celeron N5105 |
|---|
| | CPU Architecture | x64 64-bit |
|---|
| | CPU Frequency | Quad-Core 2.0GHz (burst up 2.90 GHz) |
|---|
Memory | Memory | 4GB SO-DIMM DDR4 |
|---|
| | Memory Module Pre-installed | 4GB (1 x 4GB) |
|---|
| | Total Memory Slots | 2 |
|---|
| | Memory Expandable up to | 16GB (2 x 8GB) |
|---|
| | Flash Memory | 8GB eMMC |
|---|
Storage | Drive Bays | 4 |
|---|
| | M.2 Drive Slots | 4 |
|---|
| | Compatible Drive Type | - 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe
|
|---|
| | M.2 PCIe Interface | PCIe 3.0 x1 |
|---|
| | Maximum Drive Bays with Expansion Unit | 12 |
|---|
| | Supports Hot Swappable Drives | |
|---|

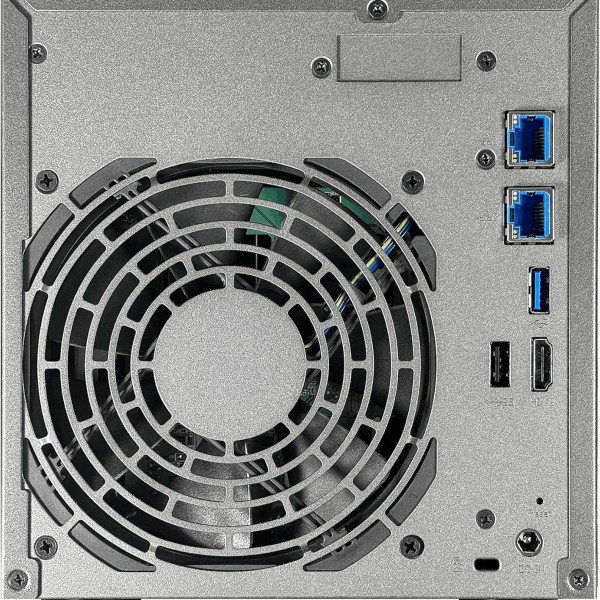

External Ports | Expansion | - 2 x USB 3.2 Gen 2 ( 10Gbps ) Type-A
- 1 x USB 2.0 Type-A
|
|---|
| | Network | 2 x 5 Gigabit Ethernet (5G/2.5G/1G/100M) |
|---|
| PCIe Expansion Slots | 1 x for optional expansion 10 GbE card |
|---|
| Multimedia Output | 1 x HDMI 2.0b |
|---|
Others | System Fan | 1 x 120mm |
|---|
| | LCD Panel | |
|---|
| | Infrared Receiver | |
|---|
| | Power Supply Unit / Adapter | 90W x1 |
|---|
| | Input Power Voltage | 100V to 240V AC |
|---|
| | Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
|---|
| | Warranty | 3 Years |
|---|
Operation | Power Consumption | 35 W (Operation);
17.3 W (Disk Hibernation);
0.88 W (Sleep Mode) |
|---|
| | Noise Level | 17.6dB (HDD idle) |
|---|
| | Operation Temperature | 0°C~40°C (32°F~104°F) |
|---|
| | Storage Temperature | -20°C~70°C (-4°F~158°F) |
|---|
| | Humidity | 5% to 95% RH |
|---|
Size and Weight | Size | 185.5(H) x 170(W) x 230(D) mm |
|---|
| | Weight | 2.94 kg / 6.48 lb |
|---|
