PT. Astrindo Senayasa

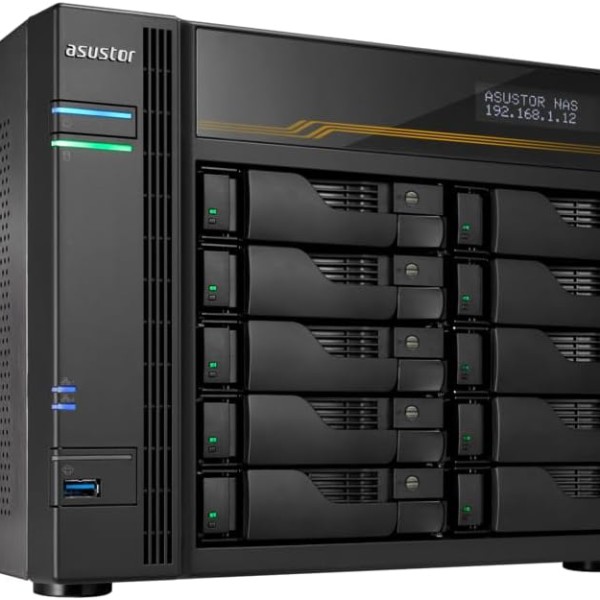

ASUSTOR LOCKERSTOR 10 GEN3 AS6810T 10 BAY NAS, AMD RYZEN V3C14 QUAD-CORE, 16GB ECC DDR5 RAM, DUAL 10

SKU:
AS6810T

Description:
  • Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
  • 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
  • Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
  • 2x USB4 ports at 40 Gbps
  • 3x USB 3.2 Gen 2 Type-A at 10 Gbps
  • 2x 10-G...
Read More »
  • Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
  • 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
  • Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
  • 2x USB4 ports at 40 Gbps
  • 3x USB 3.2 Gen 2 Type-A at 10 Gbps
  • 2x 10-Gigabit Ethernet
  • 2x 5-Gigabit Ethernet
  • Supports Wake on LAN and Wake on WAN (5 GbE)
« Read Less

ASUSTOR LOCKERSTOR 10 GEN3 AS6810T 10 BAY NAS, AMD RYZEN V3C14 QUAD-CORE, 16GB ECC DDR5 RAM, DUAL 10

Hardware Specifications

CPU

CPU ModelAMD Ryzen V3C14
 CPU Architecturex64 64-bit
 CPU FrequencyQuad-Core 2.3GHz (burst up 3.8 GHz)

Memory

Memory16GB ECC DDR5-4800 SO-DIMM
 Memory Module Pre-installed16GB (1 x 16GB)
 Total Memory Slots2
 Memory Expandable up to

64GB

  • Support mixed capacity
  • Supports ECC memory
    • ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory
 Flash Memory8GB eMMC

Storage

Drive Bays10
 M.2 Drive Slots4
 Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe
 M.2 PCIe InterfacePCIe 4.0 x1
 Maximum Drive Bays with Expansion Unit22
 Supports Hot Swappable Drives

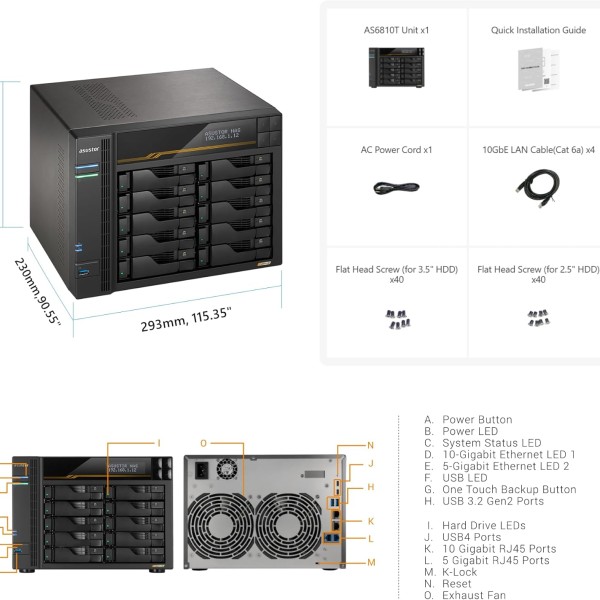

External Ports

Expansion
  • 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A
  • 2 x USB 4 ports (20Gbps per channel, 40Gbps per port)
    • Host-to-Host connectivity is not supported
    • Backwards compatible with USB 3.2 Gen 1 and USB 3.2 Gen 1
 Network
  • 2 x 5 Gigabit Ethernet (5G/2.5G/1G/100M)
  • 2 x 10 Gigabit Ethernet (10G/2.5G/1G/100M)



PCIe Expansion Slots1 x for optional expansion 10 GbE card



Multimedia OutputN/A

Others

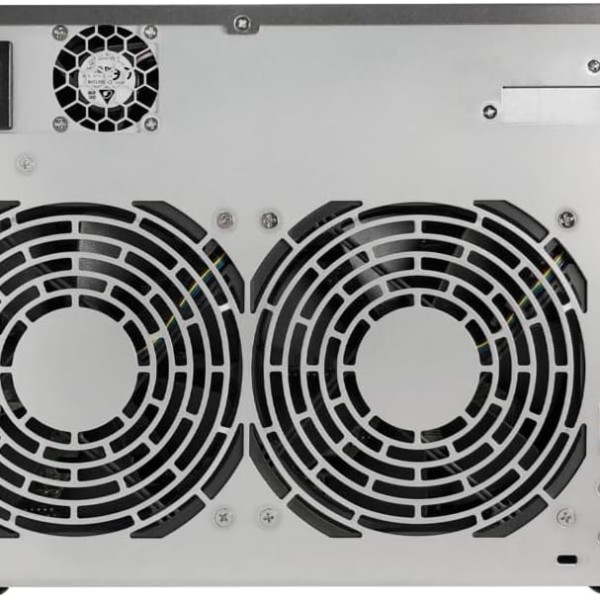

System Fan2 x 120mm
 LCD Panel
 Power Supply Unit / Adapter250W x1
 Input Power Voltage100V to 240V AC
 CertificationFCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
 Warranty3 Years

Operation

Power Consumption68 W (Operation);
2.4 W (Sleep Mode)
 Noise Level22dB (HDD idle)
 Operation Temperature0°C~40°C (32°F~104°F)
 Storage Temperature-20°C~70°C (-4°F~158°F)
 Humidity5% to 95% RH

Size and Weight

Size215.5(H) x 293(W) x 230(D) mm
 Weight6.55 kg / 14.44 lb
