Spesifikasi :

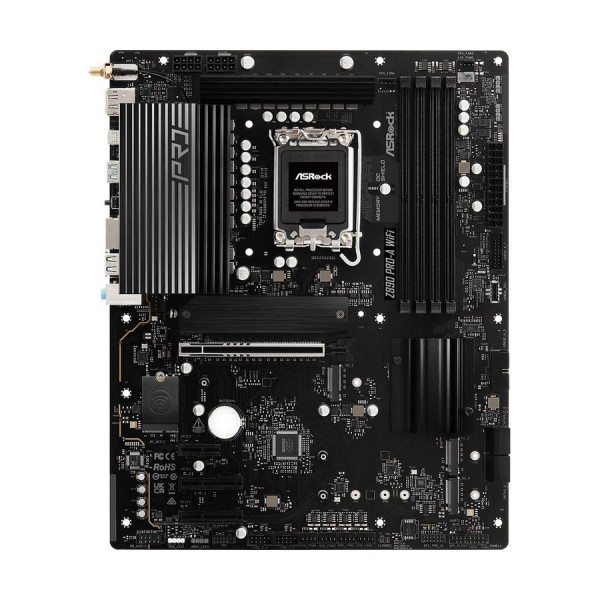

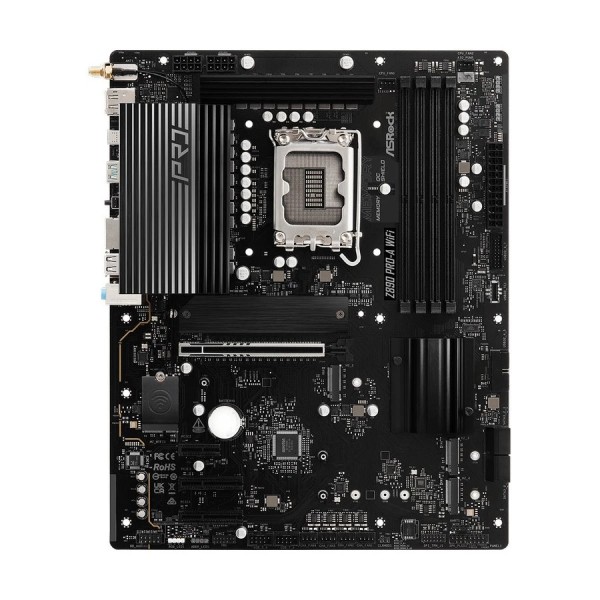

- Model Name : Z890 PRO-A WIFI
- CPU : Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
- Chipset : Intel® Z890
- Memory :
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
- BIOS : 256Mb AMI UEFI Legal BIOS with GUI support
- Graphics : Intel® Xe LPG Graphics Architecture
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- LAN : 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Slots :
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Storage :
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
4 x SATA3 6.0 Gb/s Connectors
- USB :
CPU:
1 x Thunderbolt™ 4 Type-C (Rear)
1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-A (Rear)
6 x USB 3.2 Gen1 (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

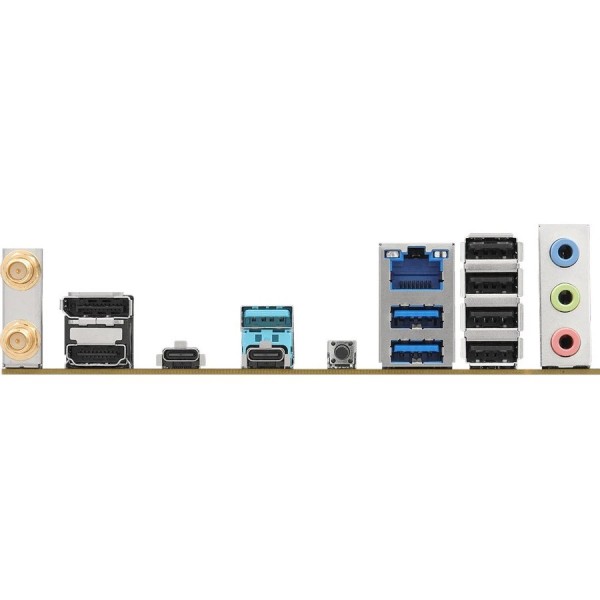

- Rear Panel I/O :
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
- Form Factor :
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
- OS : Microsoft Windows® 11 64-bit
*GARANSI RESMI 3 TAHUN
